Our comprehensive range of rubber processing extruders offers solutions for any rubber compound and any product. Depending on the product, various systems, standard extruders, pin barrel extruders, degassing extruders or silicone extruders will be used.

These extruders combine all the benefits that are required for economic operation: optimized screw geometry, wear-resistant materials, AC motors for low power consumption and gearboxes with high degrees of efficiency. What you will get are reliable and efficient machines that will be well tuned to your product and will optimize your production processes. Equipped with latest control technology, these machines are designed for reliability and ease of operation.

Standard extruders

Standard extruders are economy-priced and flexible in use. This is the best basis for your production where easily extrudable compounds are involved. Standard extruder specifications:

TypeScrew diameter ØRatioSpeedDriving powerOutput
[mm][L/D][1/min][kW]min[kg/h]max[kg/h]
GE-S 30x1230129041020
GE-S 45x14451470102545
GE-S 60x1460146535125200
GE-S 90x1490146060250400
GE-S 120x161201650110400600
GE-S 150x1615016401606001000

Pin barrel extruders

The pins that project into the screw flights are designed to break up the stream of rubber in the screw flights and facilitate intensive heat transfer and exchange of material. There will be constant temperature and flow distribution above the cross section. This will allow to process even very hard compounds or compounds otherwise difficult to extrude.

Daten Stiftextruder:
TypeScrew diameter ØRatioSpeedDriving powerOutput
[mm][L/D][1/min][kW]min[kg/h]max[kg/h]
GE-M 60x1460147535150230
GE-M 90x1490146565400600
GE-M 120x1412014501108001200
GE-M 150x16150164518014002000

Degassing extruders

Degassing extruders are used to produce non-porous hoses or profile sections. Moisture or gas cavities in the rubber compound are effectively eliminated by the degassing unit such that the product can be vulcanized unpressurized.

Daten Vakuumextruder:
TypeScrew diameter ØRatioSpeedDriving powerOutput
[mm][L/D][1/min][kW]min[kg/h]max[kg/h]
GE-V 45x16451685152040
GE-V 60x1860188035100150
GE-V 90x2290226085200400
GE-V 120x221202255110350600

Silicone extruders

These extruders are specifically designed to process silicone rubber. They are characterized by special screw geometries and coating, optimum cooling of the barrel and screw, feed designed for easy cleaning. This is the best choice if you want to produce profile sections or hoses from silicone rubber.

Daten Silikonextruder:
TypeScrew diameter ØRatioSpeedDriving powerOutput
[mm][L/D][1/min][kW]min[kg/h]max[kg/h]
SE-S 30x1230129041530
SE-S 45x1245127584060
SE-S 60x126012703550100
SE-S 90x1290126550150250
SE-S 120x12120126055200400

Extruder options

Gear pumps in combination with extruders

Gear pumps are used for products that require the smallest of tolerances or sensitive materials. Owing to the gear pump, the material can be fed with extremely low levels of pulsation and very gently. They can also be used to boost pressure such as it is required to fill molds, for example. These pumps can be attached to any extruder variant.

Feed roller with separate drive:

The feed roller can be equipped with a separate drive. In this instance, it will run at the desired fixed feed rate or it may be operated torque-controlled respectively. This may facilitate or enable respectively the feeding of problematical compounds.

Extruder-HaMafa-GmbH.pdf (in german)
File size: 200 KB
PDF-File

Vorschau

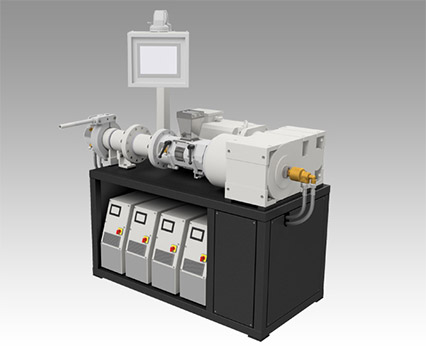

Extruder
Vorschau

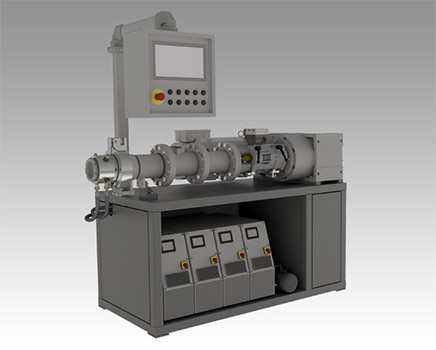

Extruder
Vorschau

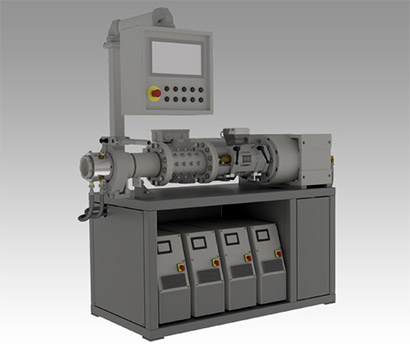

Extruder
Vorschau

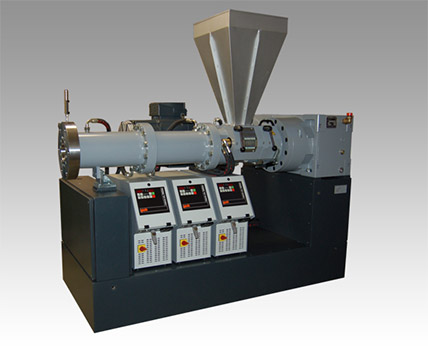

Extruder
Vorschau

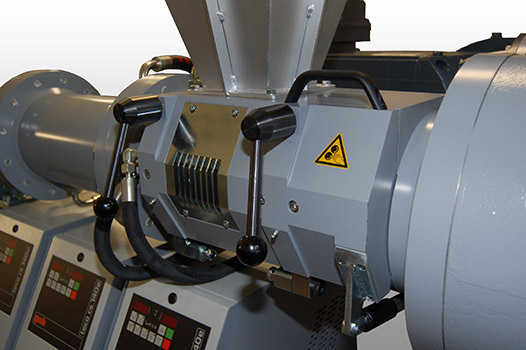

Trichterstück
